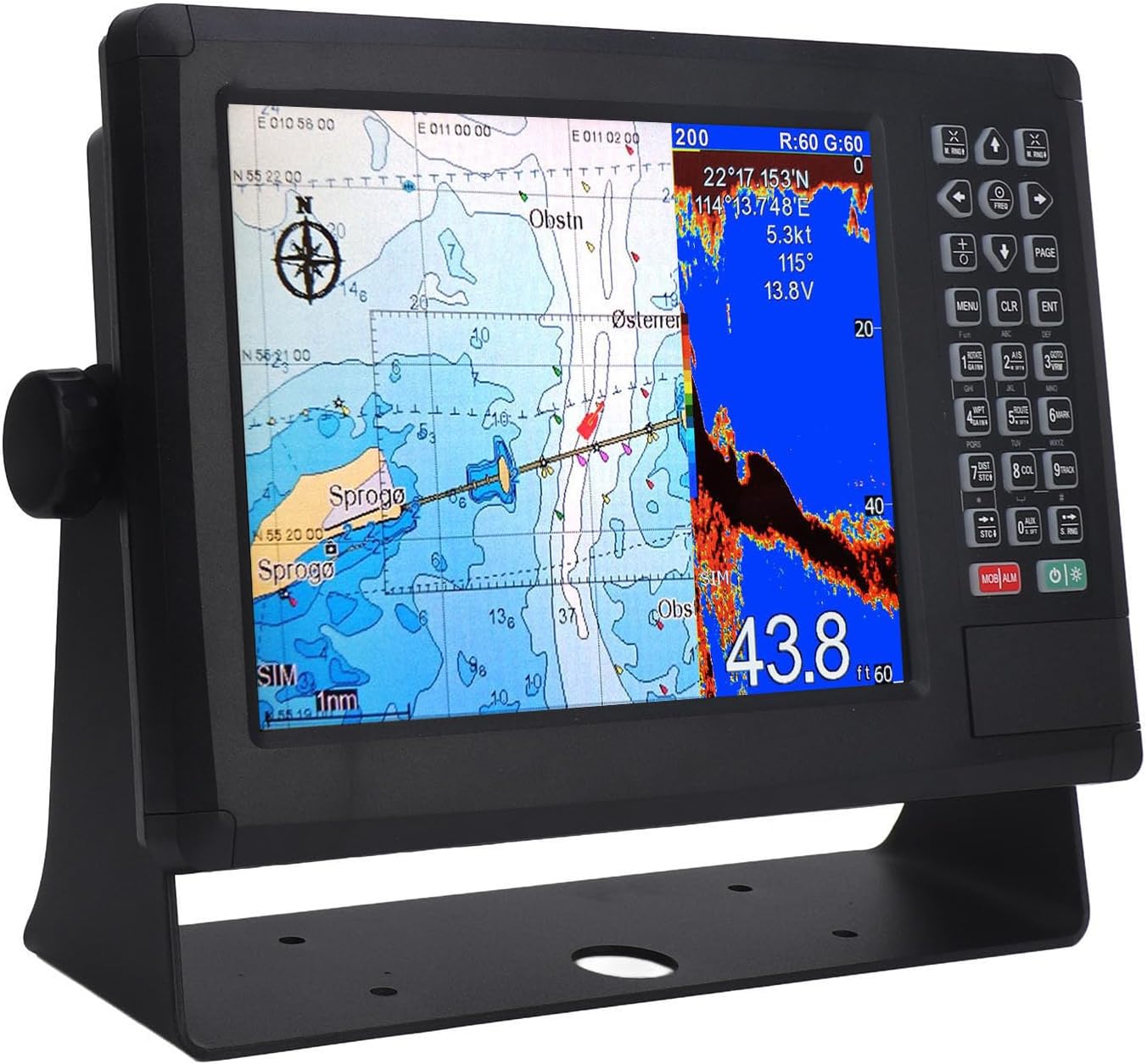

Marine Plotter, 10.4in Color TFT LCD Screen Compatible with XINUO Chart Fish Finder Seabed Tracking Auto Range Shift with Transducer

Item Type: Marine PlotterMaterial: ABSDisplay: 10.4 inch Color TFT LCDDisplay Resolution: 800 x 600 pixelsDisplay Brightness: 300cd/m2Language: English, Simplified Chinese, Traditional Chinese, VietnameseMemory Capacity: 6000 waypoints; 10000 marks; 800 tracks; 200 routes (48 points each route); 200 drawlines (40 points each drawline)Interface: For NMEA Input 2 Ports, 0183 Output 2 PortsChart: for XINUO ChartPower Supply: DC10V-36 VManual phase shift: each basic range can be shifted up and down: one unit value at a timeZoom Mode: Bottom Lock, Bottom Zoom, Normal Zoom (mid water level) selectableDisplay modes: full screen (single frequency), zoomed in split screen (single frequency), bottom locked split screen (single frequency), split screen (dual frequency)Gain control: 31 levels adjustable per operating frequencySTC level: 10 levels adjustable per operating frequencySeafloor tracking modes: auto range mode, auto displacement modeReturn wave color: 8 colorsReturn wave signal classification: 1, 2, 3, 4Return wave background color: blue (default), black, whiteDe coloring: 4 weaker return wave colors can be turned offSeabed contour lines: Highlight the seabed contour displayScreen movement speed: 0 1 2 3 4 5 6 7 8Noise reduction level: low, medium, highDepth alarm mode: shallow water alarm mode, deep water alarm modeFish alarm color: 7 different colors according to return wave: 1L (strong) 2L 3L 4L (medium) 5L 6L 7L (strong)Fish alarm size: small, medium, largeDepth reading: flexible depth line position adjustment, real time reading of depth valuesWater sound speed correction: 1500 m/s (default value), adjustable range : 1400-1600 m/sDraught line correction: adjustable 0.1 unit at a time, adjustable range: 0.0-19.9Water depth output statement: $XXDPT (for NMEA-0183)Operating Temperature: -15℃ -

• Intelligent Automatic Operation: This marine plotter offers an intelligent automatic operation mode in sounder mode such as automatic seabed tracking, auto range, auto shift, and auto gain control, making it easy to operate and increasing efficiency.
• Advanced Interference Remover Algorithm: Equipped with a self developed interference removal algorithm, the marine navigation plotter effectively suppresses co frequency interference, offering a clearer and more accurate reading.
• Built in for XINUO Chart: The device comes with a built in for XINUO chart which gets regularly updated. Plus, it's capable of connecting to a mobile network for convenient software updates online, offering up to date information.
• Stable and Reliable Design: The boat plotter features a floating GND power design that's not only stable but reliable. This ensures that it can withstand long term use in harsh marine environments.
• Dual Operating System: This boat plotter boasts a classic and utility dual operating system. Users can freely switch between the two. Whether you are fishing on the coast or offshore, it can help you accurately locate the fish.
