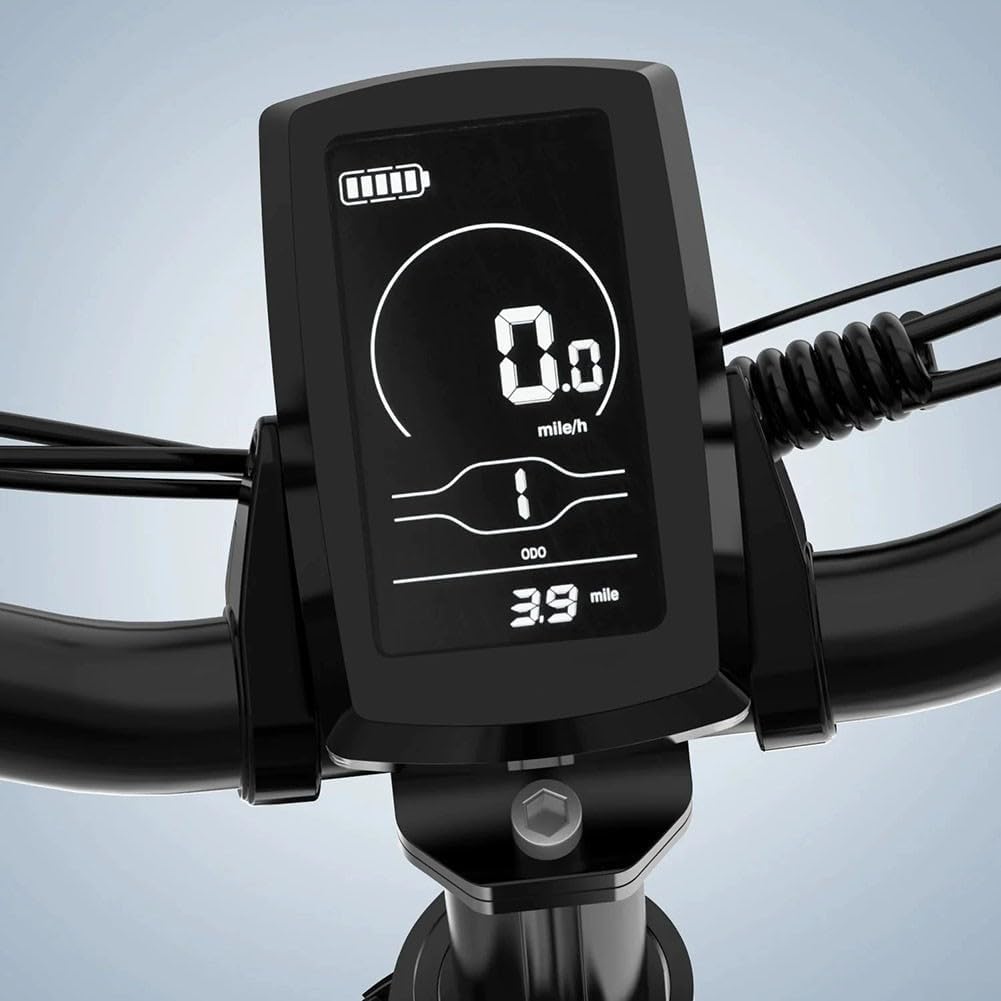

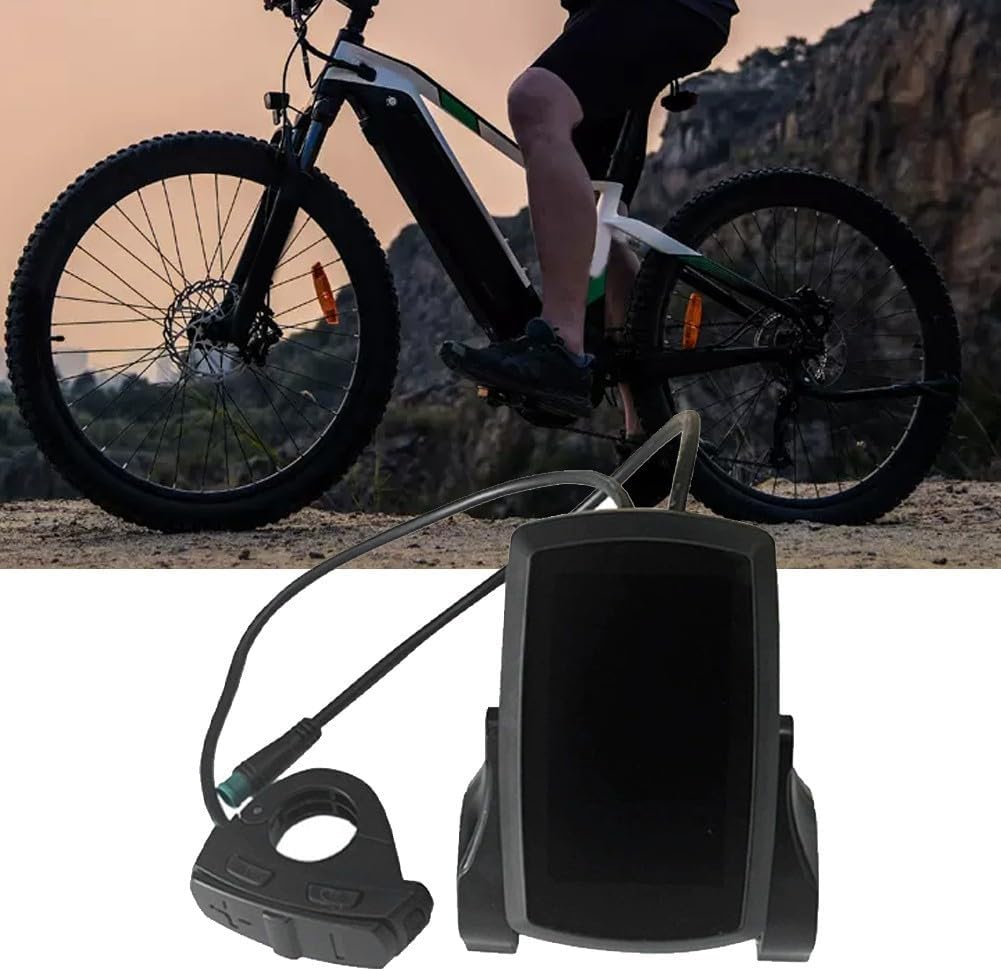

LCD Display, 36V 48V Electric Bike Intelligent Control Panel, Speed Meter, LCD Display Meter for Scooter Modification

Feature:support Voltage: 36V/48VThe lithium battery No. 2 protocol instrument and the controller are matched with the serial communication protocolso they cannot work independently or cannot be used after being connected to controllers with different protocolsAssistance gear adjustment and indicationSpeed display (including real-time speed, maximum speed, average speed)Mileage display (including single mileage and total mileage)Specification:*Material:abs*Color: black (As Pictures Show)*product name： ebike display*size : approx 95x58mmAssistant gears: 0-3 mode, 1-3 mode, 0-5 mode, 1-5 modeP01 backlight brightness: Dimmest at level 1 and brightest at level 3. P02 Mileage unit: 0 KM.1 MILE P03 Voltage level: 24V/36V/48V/52V/60V/72V, default 36V. P04 Cruise function: 0 off, 1 on, default 1. P05 Assist gear position:0-3 gear mode, 1-3 gear mode, 0-5 gear mode, 1-5 gear mode. P06 Wheel diameter: unit inch, accuracy 0.1. P07 speed measurement magnet number: 1-100. If it is a common hub motor, directly input the magnet number.If it is a high-speed motor, the reduction ratio needs to be calculated. The input data = the number of magnets × the reduction ratio.For example: The motor magnet number is 20, the reduction ratio is 4.3, and the input data is 86:20 ×4.3. P08 Speed limit: range 0-100km/h, 100 indicates no speed limit. P09 0start, non-0start Settings,0: 0 start.1: Non-0 start P10 drive mode setting 0: for Power assist drive (The output power is determined by the power assist gear. At this time, the handlebar is invalid.)1: Electric drive (driven by the handlebar, at this time the for power gear is invalid.)2: Power-assisted drive and electric drive coexist simultaneouslyP11 assist sensitivity setting range :1-24 P12 assist start-up strength setting range:0-5 P13 power-assisted steel disc type setting: 5,8, and 12 types of steel. P14 controller current limiting value setting: Default 12A range1-50AP15 controller undervoltage value P16 ODO reset setting Press and hold the up key for 5 seconds to ODO reset P17 Startup password setting PE is the startup password setting option. The startup password function of the instrument is generally not enabled by default. Users can enable the startup password of the instrument by setting PSd-y.The default factory password for the instrument is 1212. Customers can set other four-digit passwords by themselves. Please remember the password after changing it; otherwise, you will not be able to use the instrument.P18 automatic shutdown time setting PF is the option for setting the automatic shutdown time. To save the vehicle's battery power and achieve a higher driving range, this instrument panel is equipped with an automatic shutdown function after a long period without any operation. The automatic shutdown time range can be set from 1 to 60 minutes, with 00 indicating no automatic shutdown.Generally, it automatically shuts down after 10 minutes by default at the factory.Package content:1xdisplay

• [MULTIFUNCTIONAL DISPLAY CAPABILITIES] The Ebike 80C LCD meter offers detailed metrics including real-time speed and total mileage, helping you track your performance with ease.
• [CUSTOMIZABLE ASSIST SETTINGS] Choose from various assistance gear modes to tailor your ride according to the terrain and your energy needs, enhancing both comfort and efficiency.
• [EASY-TO-READ BACKLIGHT DISPLAY] Featuring adjustable backlight settings for optimal visibility in all lighting conditions, this display ensures you can access vital information at any time during your ride.
• [COMPATIBLE WITH MULTIPLE VOLTAGE OPTIONS] Designed to work with a range of voltage levels (24V/36V/48V/52V/60V/72V), this display integrates easily with different e-bike configurations.
• [SIZING REMINDER] Remember to verify your specific size requirements instead of using Amazon's sizing guide for the best compatibility with your e-bike.
