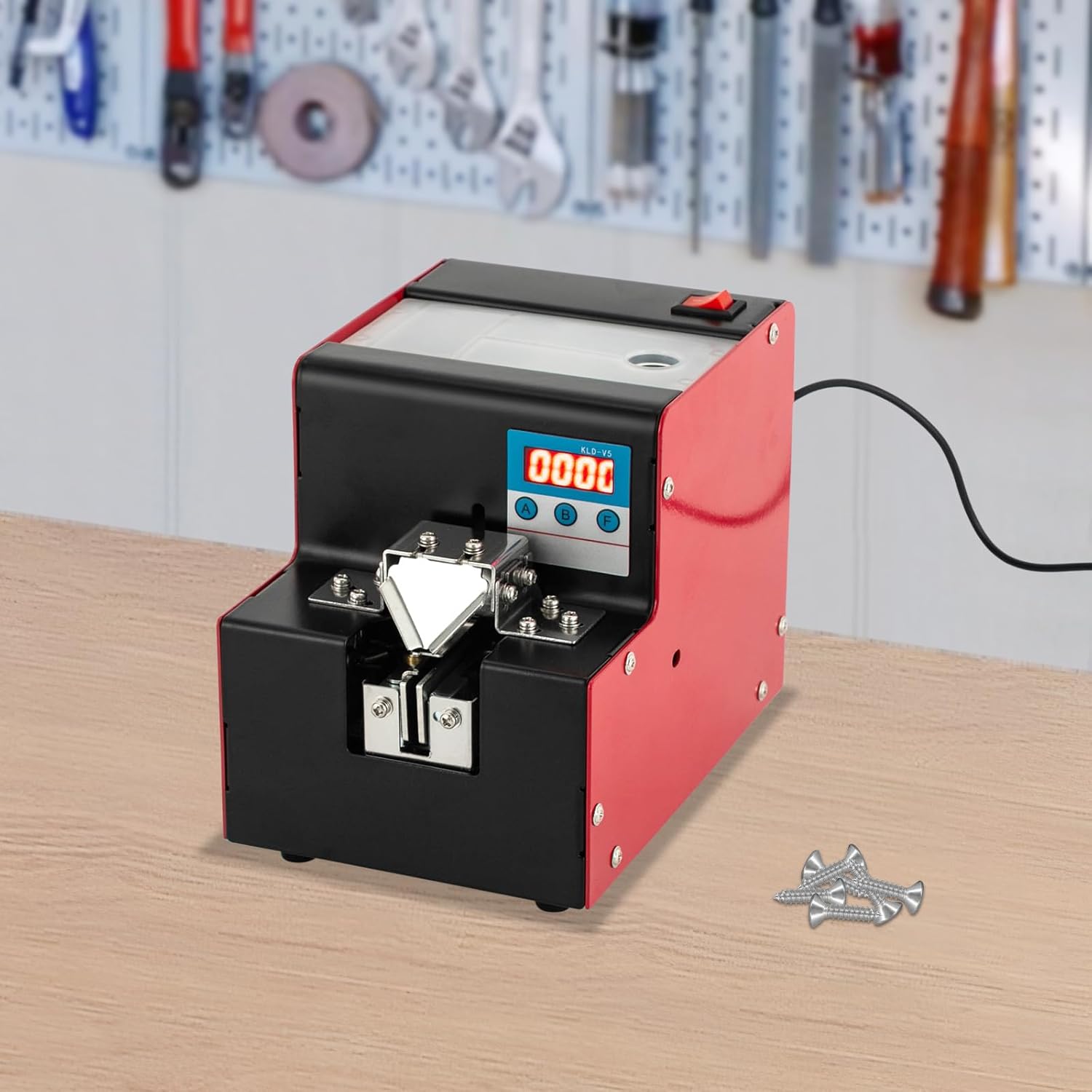

5-Speed Adjustable Automatic Screw Feeder LCD Digital Display Screw Arranging Machine Screw Counting Machine with 2 Counting Function Automatic Screw Machine

How to UseIt needs to be used together with an electric screwdriver (not included). It will automatically deliver screws to you, so you don't have to pick screws up one by one manually.Counting FunctionPress and hold A until the countdown begins and d.XXX is displayed, and enter the fixed number setting function. Press A to increase the parameter. Press B to decrease the parameter.After setting the parameter, press F to save and exit. (When the fixed number function is not needed, you can follow the above steps and set the parameter to d.000 to restore the normal counting function.)SpecificationScrew Compartment Capacity: Depending on the Size of the ScrewsCounting Function: Countable 9999Adjustable Speed Gear: 5 GearsDisplay Type: LCDAdapter Input Voltage: 100-240V, 50/60Hz, 1AAdapter Output Voltage: 12V, 2A, 24WApplicable Screw Length: Within 20mm/0.79inApplicable Screw Diameter/Adjustable Track Width: 1-5mm/0.04-0.2in (Optimal Usage Range: M2-M4)Net Weight: 3kg/6.61lbsProduct Size: 12.5x15x18cm/4.92x5.9x7.09inPackage Included1 x Automatic Screw Feeder1 x Power Adapter1 x Chinese Manual1 x ScrewdriverNoteThis product does not contain screws and electric screwdriver.To avoid damaging the machine, disconnect the power supply before adjusting the machine.The brush should be installed as far as possible to the screw position, not too high or too low.When removing the screws, take care to slide down vertically to select the screws first, and then pull the screws forward horizontally.

• 【2 Counting Function】Cumulative counting: the machine will count automatically when you remove a screw. Fixed quantity counting: you can set the number of screws you need, and after removing the set number of screws, the machine will emit a sound and automatically enter the next counting cycle.
• 【Thoughtful Design】Adjustable track (adjustable track width: 0.04-0.2in) and changeable brush height make this machine suitable for many kinds of screws (applicable screw diameter: 0.04-0.2in, applicable screw length: within 0.79in), such as ordinary screws, flat head screws, washers screws, tapping screws, etc.
• 【Easy to Use】 The speed can be adjusted (5 levels) to meet your different needs. All you need to do is align the electric screwdriver (not included) with the screw hole and this product will continuously and automatically feed you the screws (not included).
• 【Clear LCD Display】 It clearly displays the number of counts for your convenience. V-shaped Slot: It makes the screws come out one by one. Clear Cover: It allows you to see the amount of remaining screws for timely refilling. The circular hole on the cover plate is convenient for you to open it.
• 【High Efficiency】It will jam the arranged screws in the discharge port, and after you take out one screw, the next one will be raised automatically. Compared with the traditional screw tray, our machine has higher productivity.
