32in Rear Differential Axle Kit +60V 2500W DC Brushless Electric Motor +Controller 60/72v & 16x8-7 Tubeless Wheel Tires Rim for Electric Vehicles UTV Quad Buggy Dolly Carts Trikes Go Kart

Chinese ATV Tire Rim Wheel Assembly -16x8-7 - 4 Bolt - Front Rear 4PRMax inflates 24 P.S.I (165 Kpa)Max Load 160LBS (73 kg)10 P.S.I Operating Pressure Tread 2 NylonSide Wall 2 NylonRim 5.0 AT / FY-002-012 / Fire PatternPlease notice: it is 4 holesNot for highway service-----------------------Brake cable length: 1200mm/47.24inCaliper mounting hole spacing: 62mm/2.44in------------------------------------------Axle: Wheel Hub distance: 32" /810mmDiameter: 25mm6 tooth Spline Drive axleOD of the disc rotor: 190mmBolt Spacing of the 4 Stud wheel hubs:110mmMaterial: IronFunction: Regulate speed differences, Enhance driving stability, Optimize power transmissionApplicable Models: ATV UTV BajaGo-kart4-Wheeler Quad Buggy Electric Vehicle-----------------------Differential Gearbox: Gear Ratio: 12:1High Power Electric Brushless MotorThe motor has high speed and high torque; with super smooth drive characteristics, almost no noise, super load work, like the refrigerator work hum is still smallDC Brushless Differential MotorITEM NO.: JS14BA/12Rated Voltage(V): 60VOutput Power(W): 2500WCommutation: BrushlessRated Speed (RPM): 5000rpmMax Input Rated Speed (RPM): 6000r/minRated Current: 63AMax Output Torque: 400N.mReduction Ratio: 12:1Insulation Class: FProtection Class: IP33---------------DC Brushless ControllerMade of high-quality aluminum material2500W60V/72V110A------------Packing List1x DC Motor +Gearbox1x Controller1x Rear Axle Kit1x Caliper2x Wheels

• 16x8-7 Tubeless tire with 7-inch rim: Central hole: 3.54in (90mm); Bolt diameter: 0.39in (10mm); Mounting hole eye to eye: 3.07in (78mm); L x W: 16.73in x 5.70in; Max load 160lbs (73kg); 4-Ply; 24psi
• 60V 2500W Brushless DC Motor and Gearbox: Rated Speed: 5000RPM, Max Speed: 6000RPM, Max Torque: 400N.m, Shaft Spline: 6 Teeth, Rated Current: 63A, Reduction Ratio:12:1
• Brushless Controller: 60v-72v, 110A, 2500w, L x W x H size is 12.8’’ x 5.3’’ x 3’’ (326mm x 135mm x 75mm)

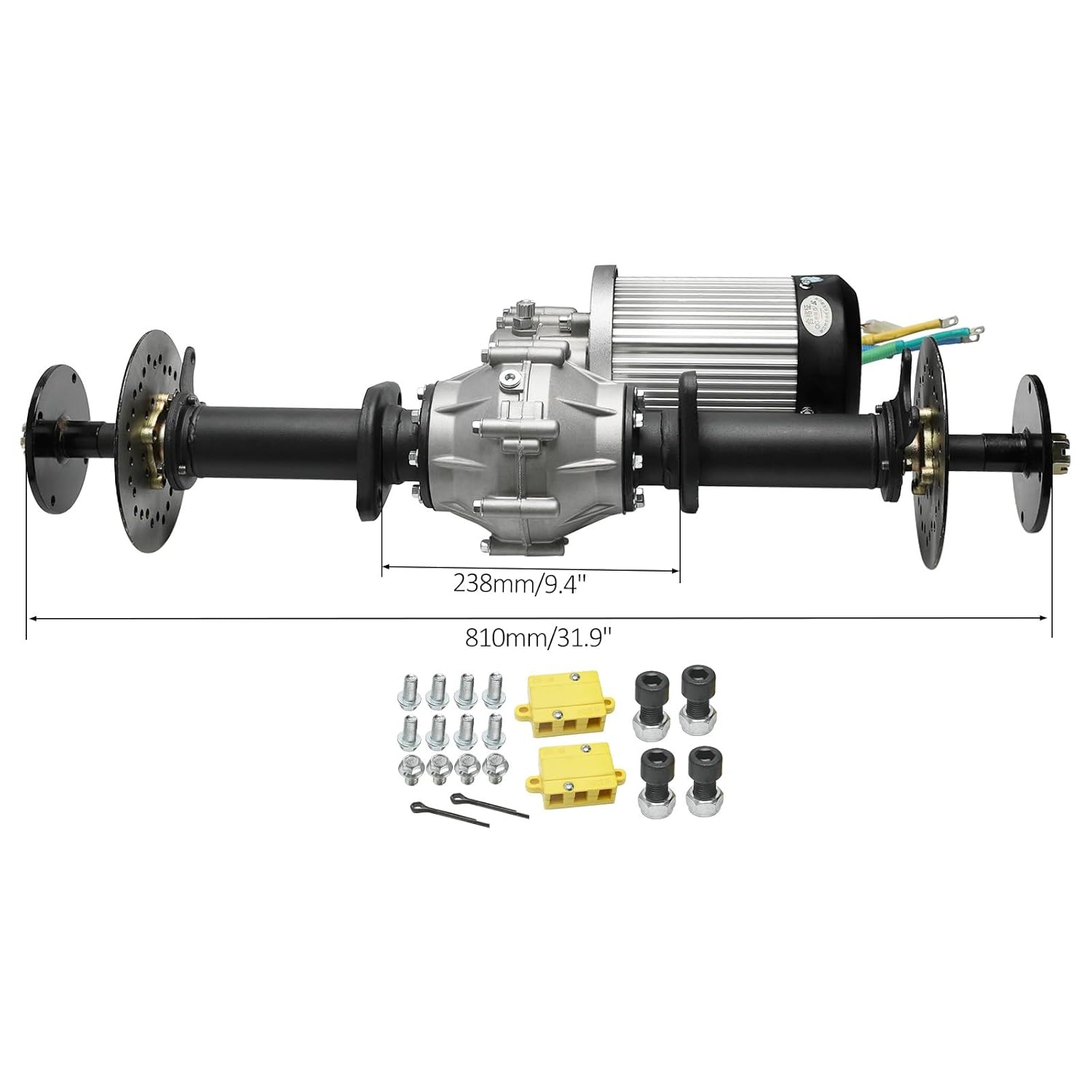

• Rear Axle Size: Axle overall length: 810mm / 32inch; 6T; 4 holes wheel hub, bolt distance: 110mm / 4.3inch
• Brake caliper: cable length: 1200mm/47.24in; mounting hole central spacing: 62mm/ 2.44in; brake hose length: 1200mm/ 47.24in

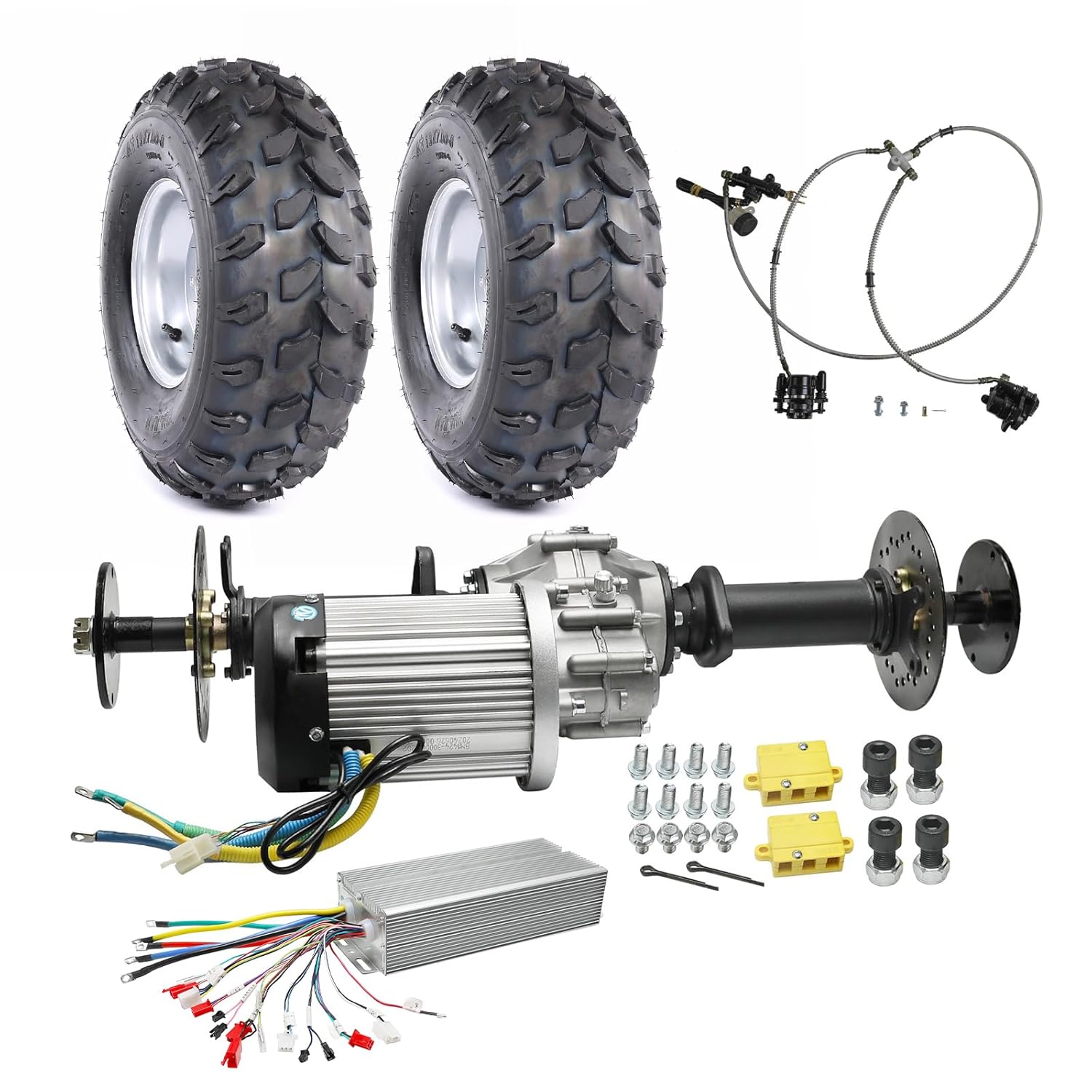

• Kit includes: 1x rear axle kit +1x brushless motor +1x controller +1x brake caliper +2x wheels
